Images of an Orangery: Real Examples to Inspire Your Build

Aug 14, 2025

4 min read

Updated: Oct 9

White painted timber orangery with a roof lantern across the rear of a large rendered Edwardian house

Pictures of an orangery show a solid-edged room with a glazed lantern in the middle of a flat roof: piers or pilasters at the corners, tall glazing between them and a deep fascia around the top. The examples below are captioned with the detail that makes each design work, so you can read any orangery photograph as a designer does.

What does an orangery look like?

An orangery looks like a solid room with a glass roof in the middle. From the garden you see brick, stone or hardwood piers with full-height glazing between them, a deep fascia running around the roof edge, and a glazed lantern rising from the flat roof above. Inside, the ceiling is plastered around the perimeter and open to the sky in the centre. That combination, solid edges and a glazed core, is what separates an orangery from a conservatory in every photograph, and it is what our traditional hardwood orangeries are built around.

Traditional orangery designs

A white hardwood orangery on a stone farmhouse. The deep white fascia and the pilasters between the glazed bays do the work here, and the roof lantern rises from the centre of a flat roof. This is the textbook orangery form.

Cream painted timber orangery front with pilasters, deep entablature and open French doors onto a brick step

A grey hardwood orangery on an ironstone cottage. A muted grey frame sits quietly against warm stone. The lantern is modest and centred, and the planting in front softens the base so the room reads as part of the garden.

A green hardwood orangery with brick piers on a town house. The piers are built in brick matched to the house and a deep cornice runs above the glazing. Copy the proportions: piers just wide enough to look solid, glazing as tall as the fascia allows.

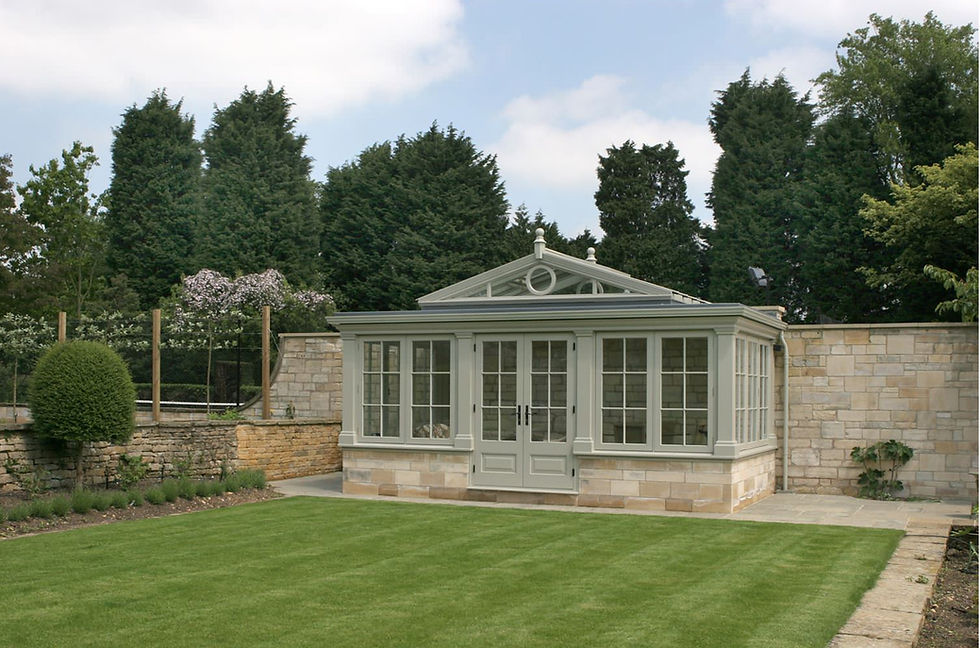

A pavilion orangery in a walled garden. A pedimented lantern crowns the roof and the elevation is symmetrical, with the door centred under the lantern. Symmetry is the whole design in a pavilion like this.

Modern orangery examples

A modern orangery keeps the same proportions as a traditional one, solid perimeter and glazed centre, with quieter detail: a flat roof, a plain deep fascia with no moulding, slim frames in a dark colour or white, and either a low-profile lantern or large flat rooflights. Dark frames against pale walls give the elevation a graphic quality, and a low lantern keeps the height down where neighbours are close.

Small orangery examples

A small orangery succeeds in one of two ways: by matching the house exactly, in colour, brick and cornice line, or by contrasting with it confidently. In a narrow side return, put the glazing on the long elevation and run the lantern along the roof rather than squeezing a square one into the middle. The same rules apply at any size: slim piers, a centred lantern and a roofline that sits below the first-floor sills.

Orangery or conservatory? Spotting the difference

A hardwood room with a glazed hipped roof on a red-brick farmhouse. This sits between the two: substantial hardwood framing like an orangery, but a roof glazed from edge to ridge like a conservatory.

Orangery lounge beneath a large roof lantern set in a plastered ceiling, French doors open to the patio

A hardwood room at dusk in a stone courtyard. The pitched roof is fully glazed and there is no lantern or solid perimeter roof, so by the definition above this is a conservatory, however orangery-like the frames look.

A gable-ended glazed room on a stone base. Again a glass roof from eaves to ridge, which makes it a conservatory. Compare its roof with the flat roof and lantern in the first example on this page.

What to take from the pictures

Three things recur in every good orangery image. The lantern is centred, and as a rule of thumb its glazed area is about a quarter to a third of the ceiling it sits in, adjusted for orientation and room use. The piers are as slim as they can be while still looking solid. And the roofline sits below the first-floor sills so the orangery belongs to the house rather than competing with it. Our orangery design ideas take those principles further, style by style.

Orangery images questions, answered

White painted timber orangery with roof lantern and brick plinth on a red-brick period house

Sage-green painted timber orangery with brick piers and leaded upper lights on a brick townhouse

Pale grey painted orangery with roof lantern on an ironstone house above a stone terrace

What is the difference between an orangery and a conservatory in a photo?

Look at the roof and the corners. An orangery has a solid roof with a lantern in the middle and solid piers at the corners. A conservatory has a glass roof from edge to ridge and glass or frame at the corners.

Can these images be used for planning?

They are useful for briefing a designer and for showing a planning officer the intent, but a planning application needs drawings of your own house. We prepare those as part of the design.
